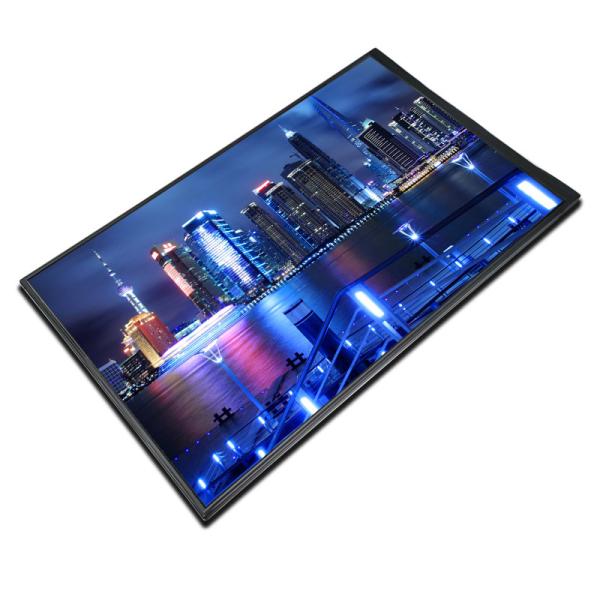

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : CH800FH03

Certification : ROHS 、ISO9001 、CE

Place of Origin : ShenZhen , China

MOQ : 100 pcs

Price : /

Payment Terms : T/T

Supply Ability : 200K PCS / Month

Delivery Time : 7 - 15 working days

Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements

Module type : 8 Inch

Storage TEMP : -30°C TO 80°C

Brightness(Center point) : 300cd/m² (MIN),350cd/m2 (TYP)

Chromaticity(Center point) : x=0.305+/-0.04;y=0.335+/-0.04

Uniformity : 70%(MIN),75%(TYP)

BACK LIGHT : 24 chip white LEDs If= 20mA/LED

Contact Now

8 Inch 1200*1920 High Resolution IPS LCD Display 350cd/M2 Luminance

Normally Black Display Mode

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

MODEL NO. CH800FH03
Module type 8 Inch TFT
Display Mode IPS/Transmissive/Normally Black
Requirements Environmental Protection RoHS
Number of Dots 1200*3(RGB)*1920
Viewing Direction 80 / 80 / 80 / 80
Module size 114.7(W)*184.2(H)*2.5(T)mm
TFT Active area 107.64(W)*172.224(H) mm
TFT Dot pitch 0.0897(W) * 0.0897(H) mm
Unspecified Tolerances Unspecified Tolerances
Interface 4 lane MIPI
Backlight Type White LED
Luminace 350 cd/m2

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

ChengHao Display model CH800FH03 is a Truly color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com

-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.

This TFT LCD has a 8 Inch diagonally measured active display area with 1200*1920

hight resolution.

The driver can display 16.7M colors by 4-lane MIPI R.G.B.signal input. The driver is mounted on

the glass and the interconnection via FPC including components to drive the display module.

Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

backlight and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI

Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive

8 Inch 1200x1920 350cd/M2 IPS LCD Display Normally Black 4 Lane MIPI
